Assembly process

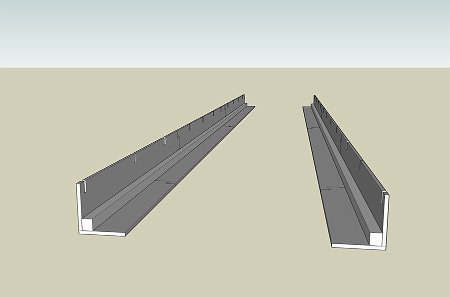

longerons Two main girders are laid down first
Two main girders are laid down first

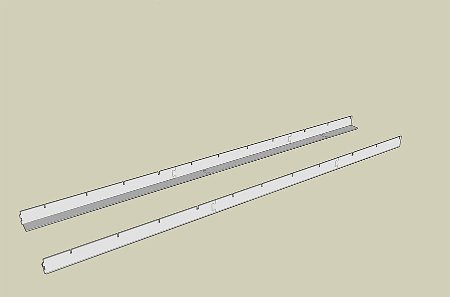

AV08 Notches have been NC cut to receive station supports
Notches have been NC cut to receive station supports

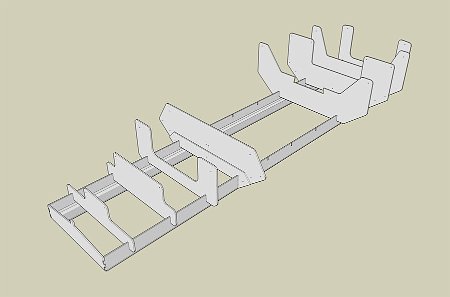

chantier Station supports are laid down. As all other parts, they are cut on a NC machine
Station supports are laid down. As all other parts, they are cut on a NC machine

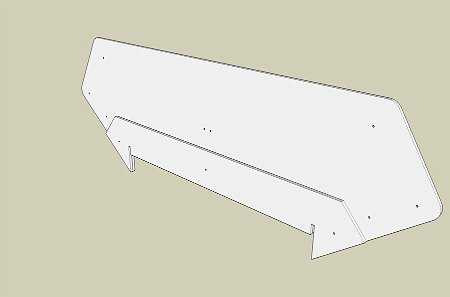

gabarit-support_3 Two supports are doubled and will be extended at a later stage to make rolling over disks
Two supports are doubled and will be extended at a later stage to make rolling over disks

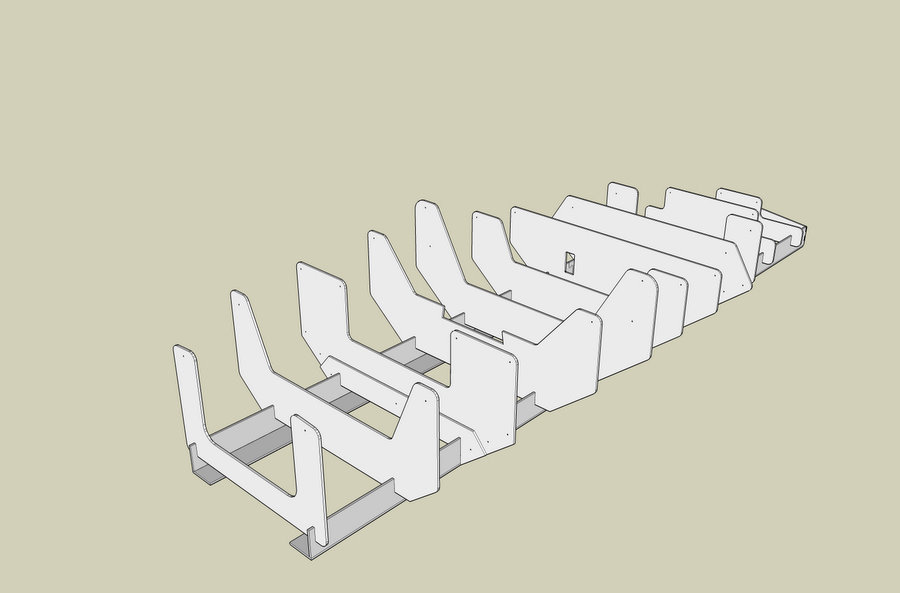

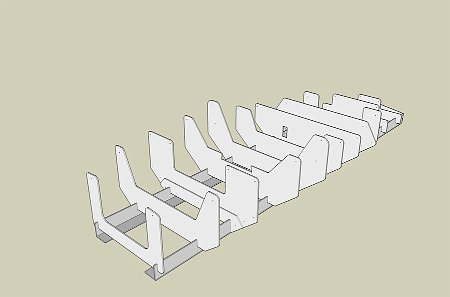

AR07 All supports are in place
All supports are in place
cloison 6 Transverse bulkheads are bolted to supports. Holes are already drilled during NC cutting. The yardstick is useless!
Transverse bulkheads are bolted to supports. Holes are already drilled during NC cutting. The yardstick is useless!
