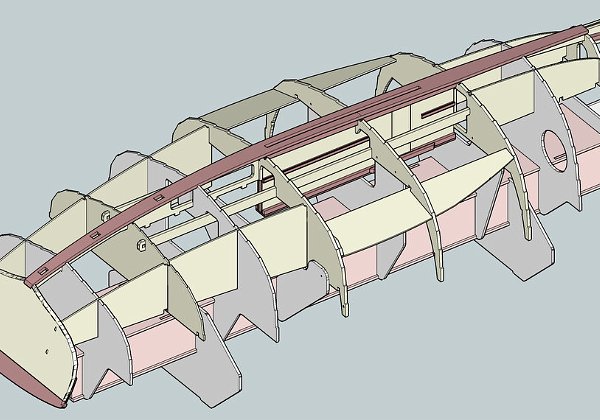

2011 clinker kit assembly sketches

The sail and oar reference, 4.45 m in length
Go to Ilur description

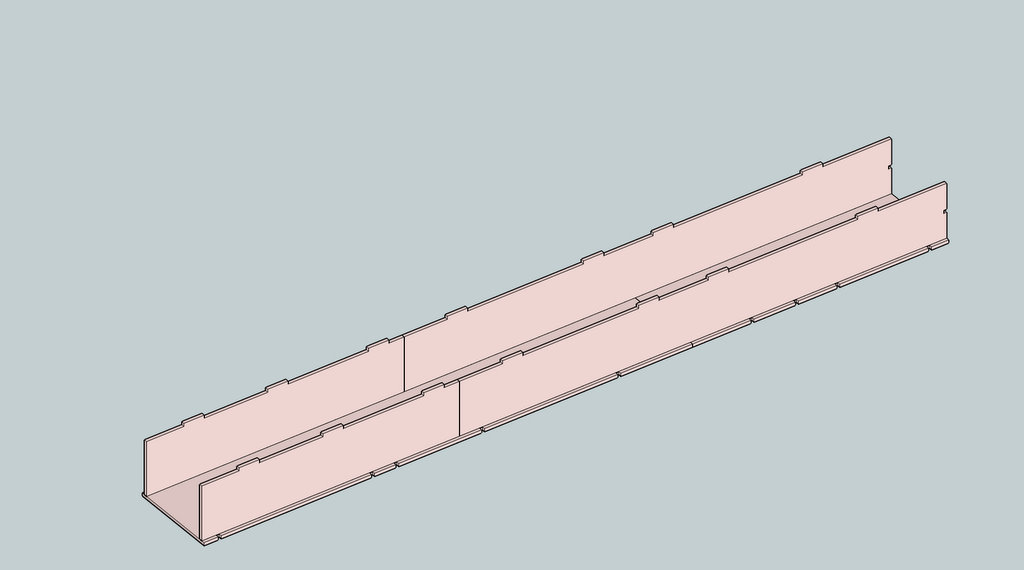

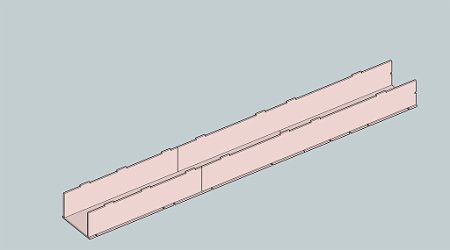

01 Main girder
Main girder

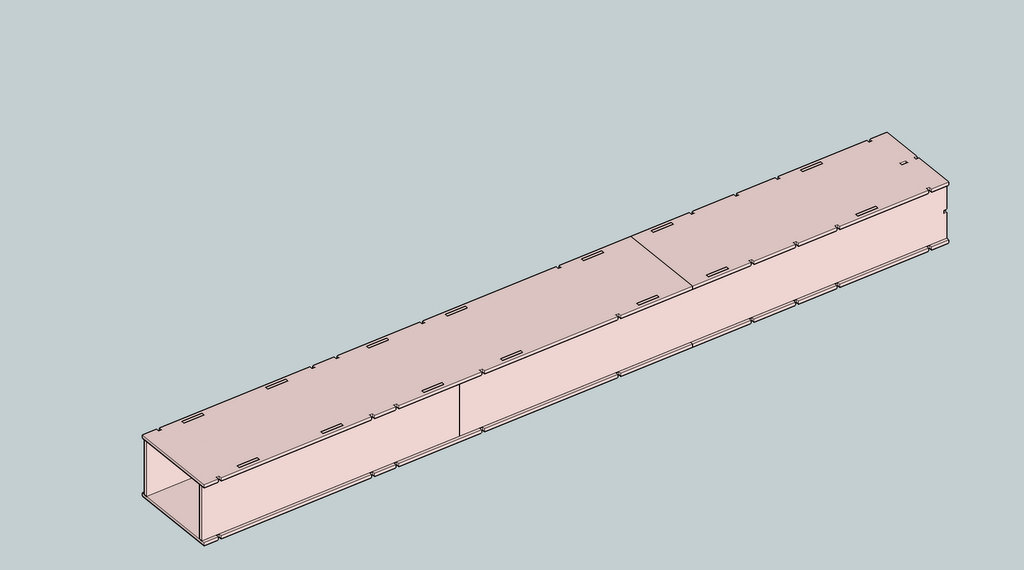

02 Main girder closed
Main girder closed

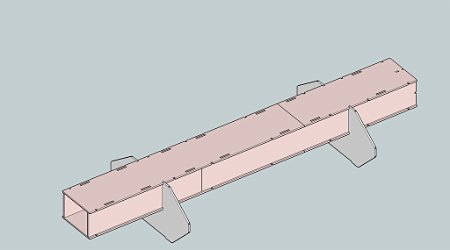

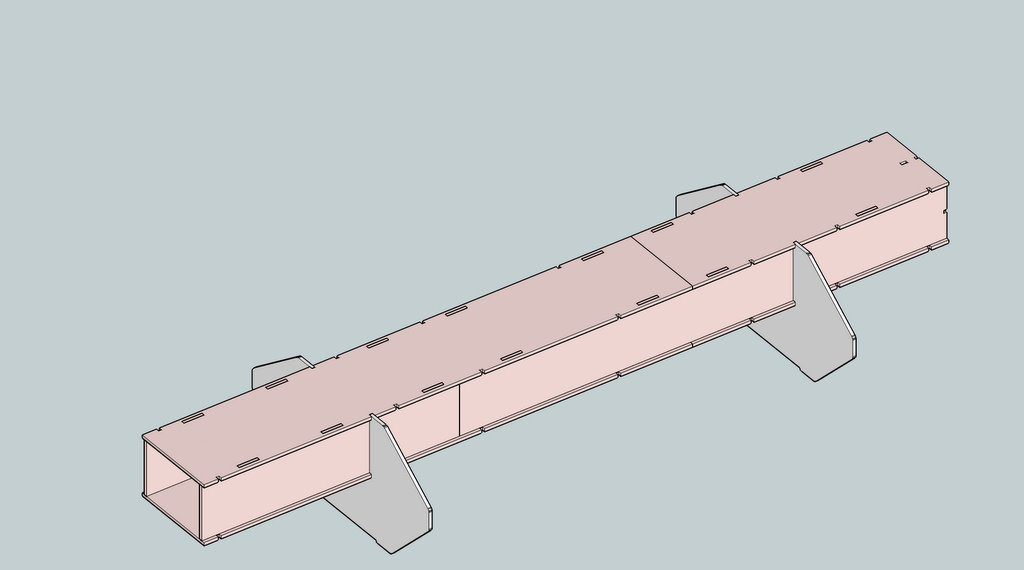

03 Main girder supports
Main girder supports

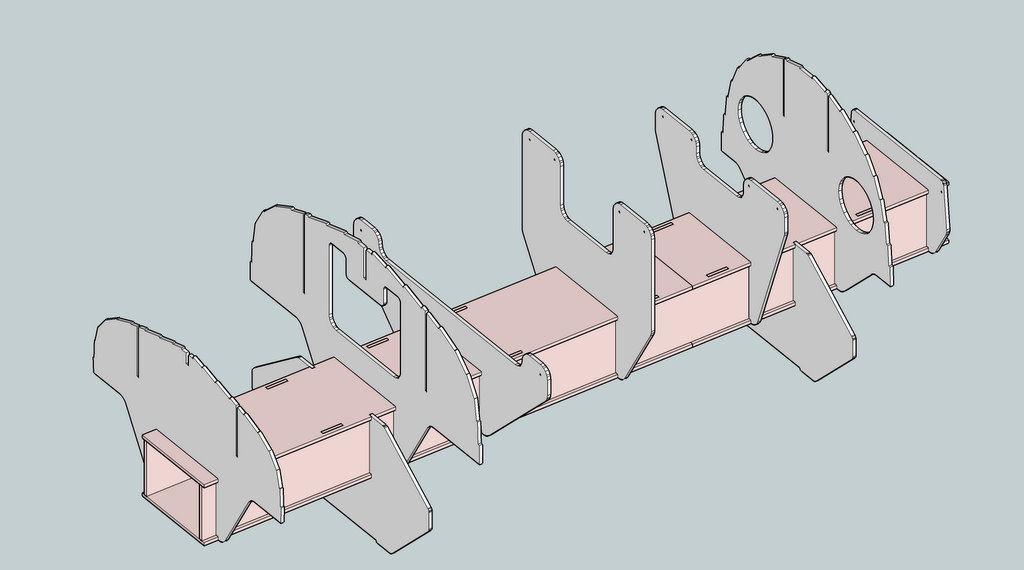

04 Station moulds and bulkheads supports
Station moulds and bulkheads supports

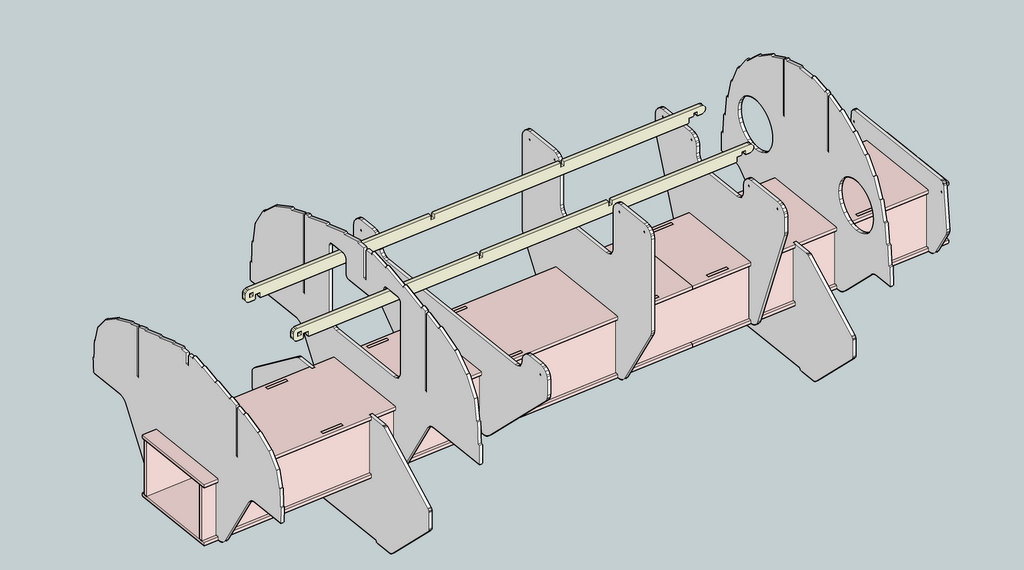

05 Floorboards girder
Floorboards girder

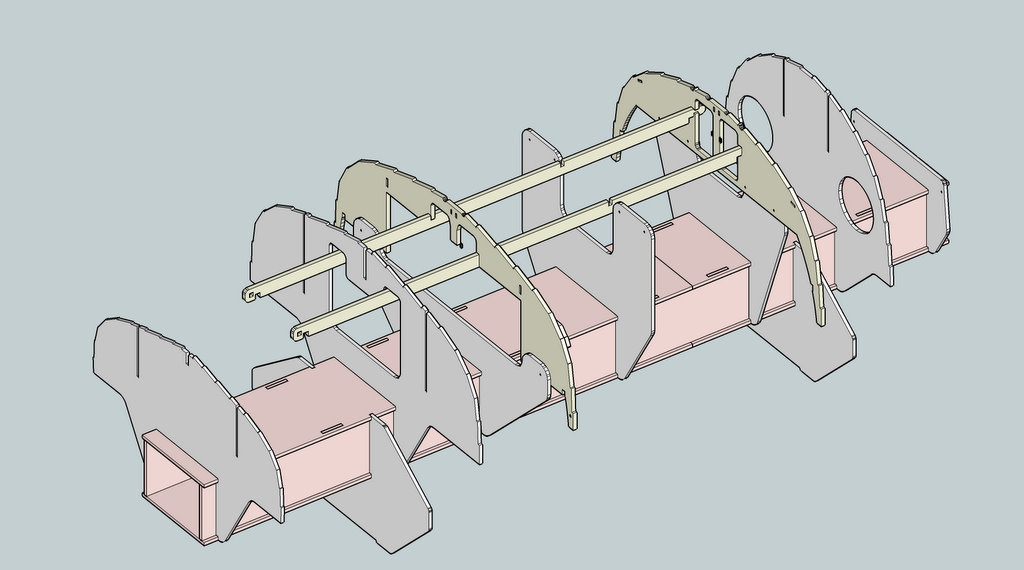

06 Bulkheads at ends of centreboard case
Bulkheads at ends of centreboard case
