Jewell assembly sketches

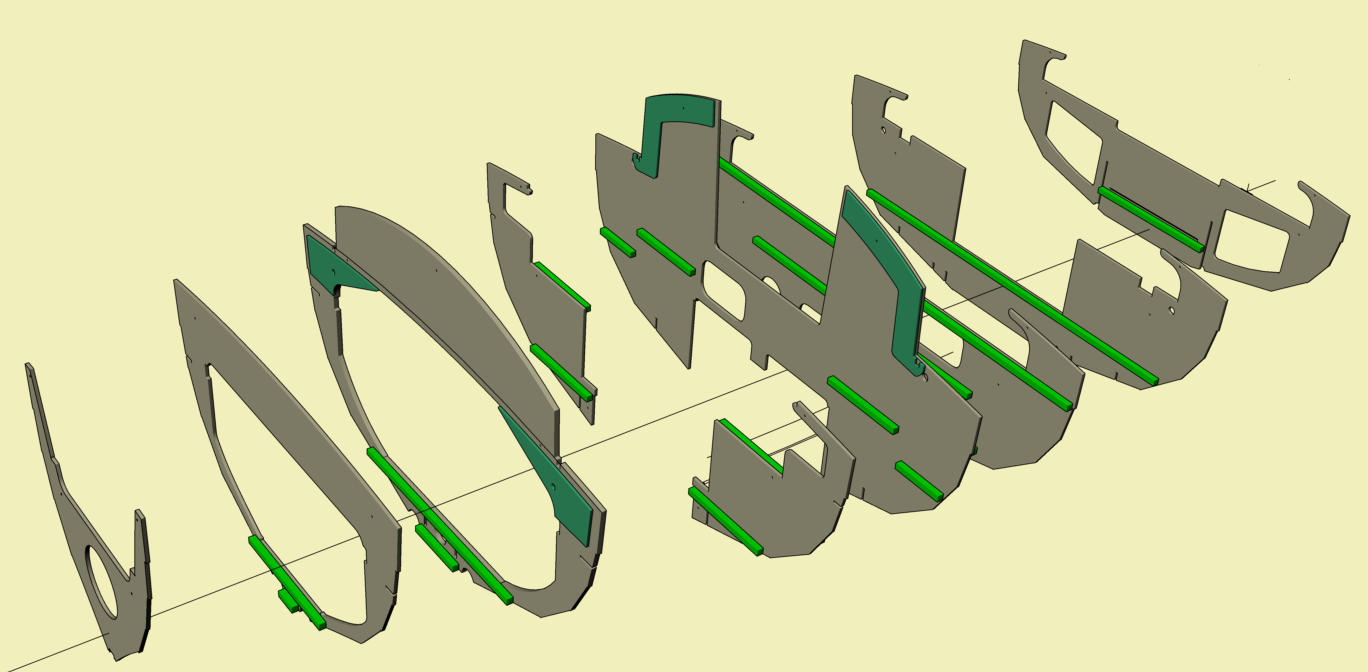

jewell-montage-01 Dressing the transverse bulkheads

Dressing the transverse bulkheads

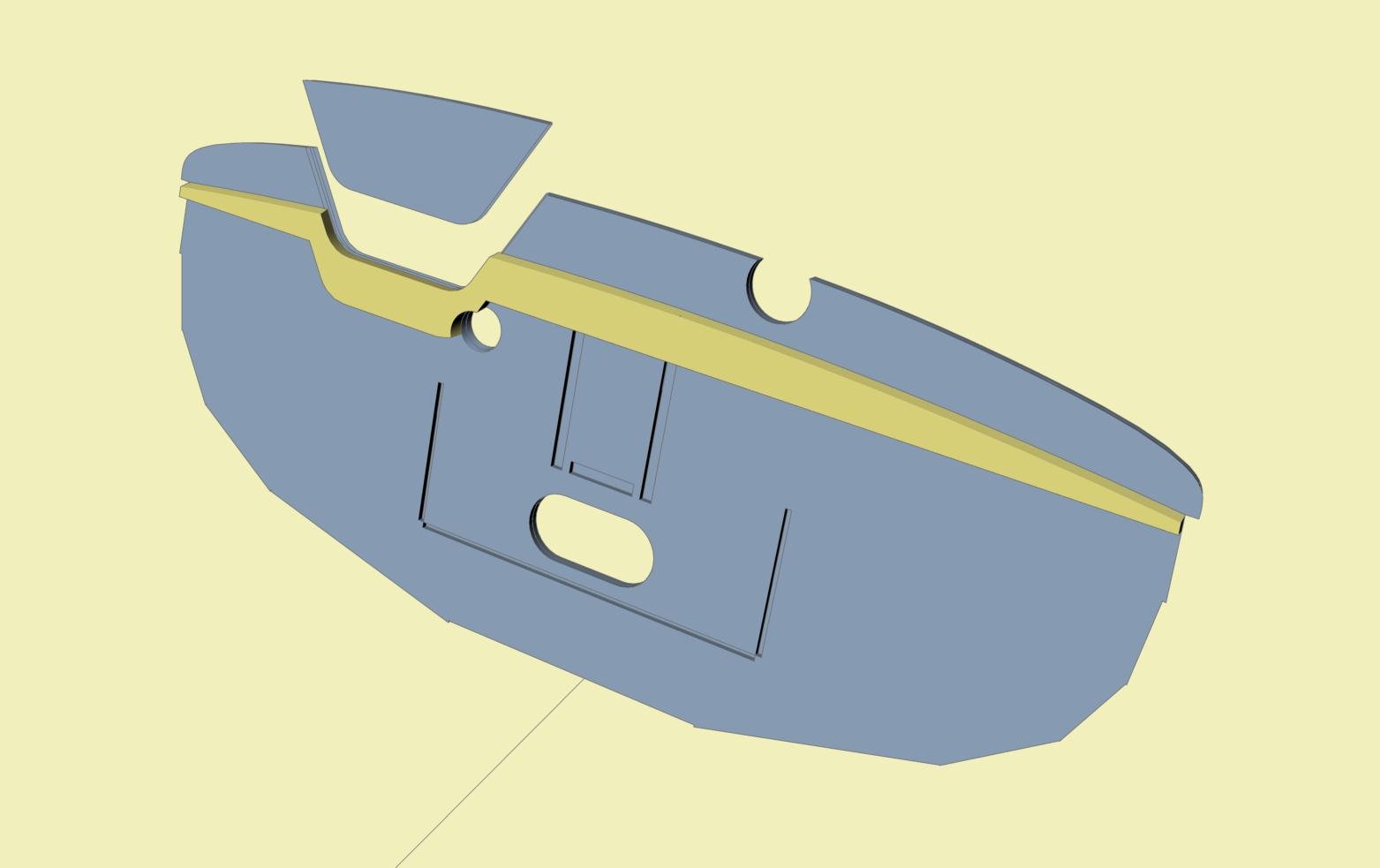

jewell-montage-02 Prefabrication of the transom made of two layers of plywood

Prefabrication of the transom made of two layers of plywood

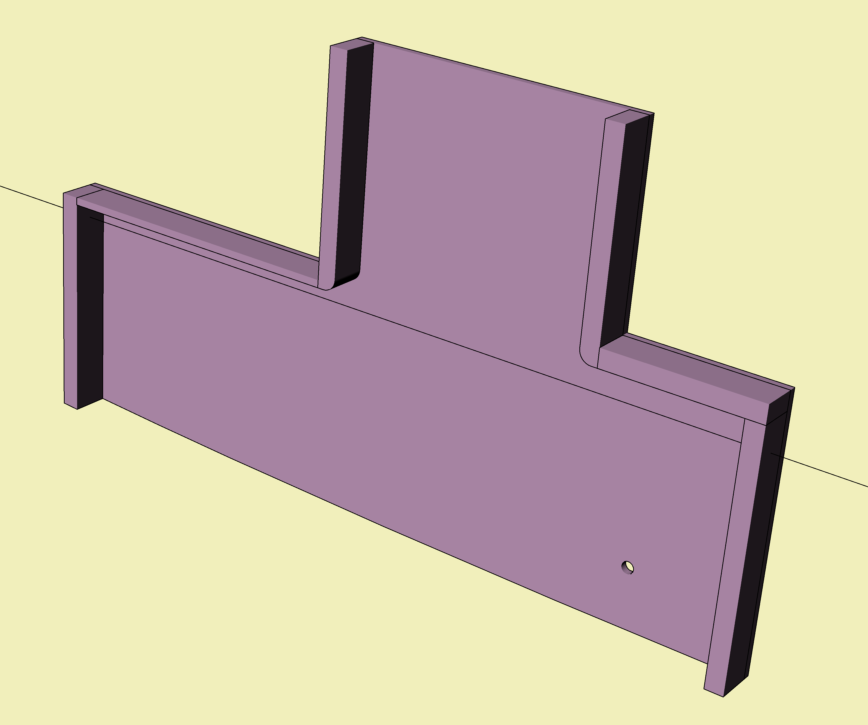

jewell-montage-03 Prefabrication of the centreboard case

Prefabrication of the centreboard case

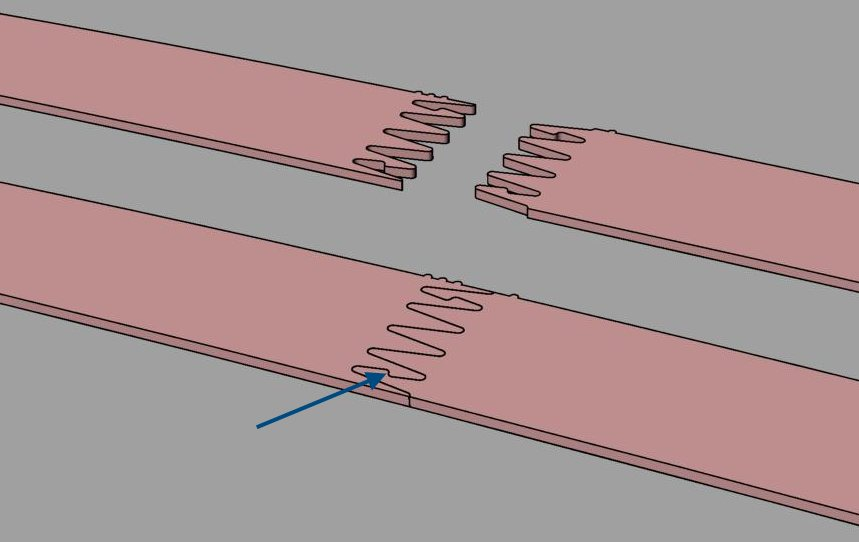

jewell-montage-04 Planking finger joints

Planking finger joints

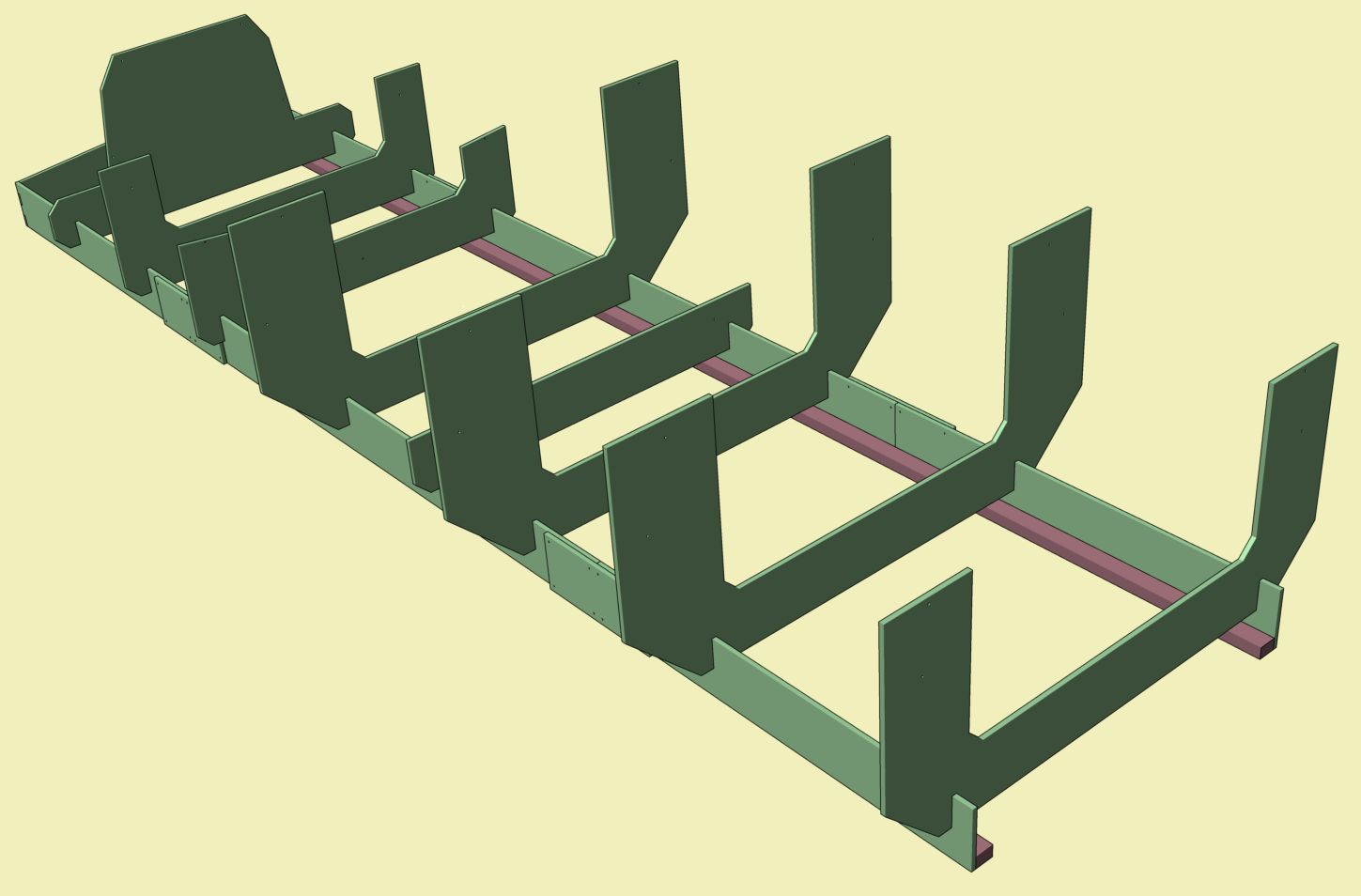

jewell-montage-05 Building frame

Building frame

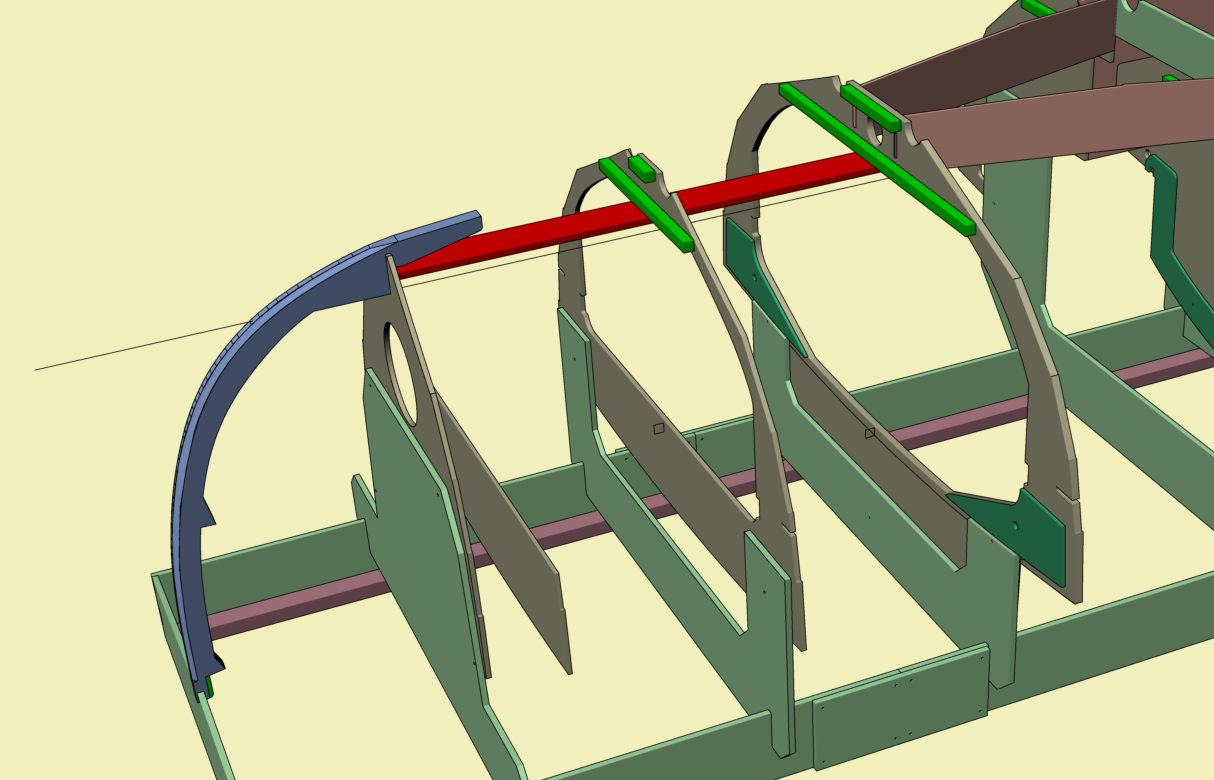

jewell-montage-07 Fore bulkheads bolted on building frame. Stem inserted.

Fore bulkheads bolted on building frame. Stem inserted.
