Lateen rigged trailerable mediterranean day-boat

Hull length / waterline 5.00 / 4.92 m Sail area 15 m²
Breadth / waterline 1.75 / 1.56 m Outboard motor 6 ch
Draugth 0.40 m Design category / Crew C4 / D5
Light weight / ballast 370 / 40 kg Building time with plywood kit 650 heures
Attention: The plan is not fully ready. Ask the designer for the delivery time, about 1 month.
A German version is also available, with some additional delivery time!
Attention: this boat is built only with a numerically cut plywood kit. The kit may be purchased from one or my partners.

For many years, I had in mind to draw a Mediterranean boat, named pointu or barquette on the French Med coast. Michel Aubert, living in the countryside near Fréjus and Cannes, gave me the chance. As most of my designs, I did not try to draw a true replica of a given traditional boat, but to create something inspired from tradition, but suitable for both home builders and present days use. In particular, the boat had to be trailerable and easy to launch, such that it not necessary to have a permanent mooring. The hull length is 5 m, making the boat built and maintained in a current size garage. Dimensions and hull lines are close to existing barquette.

These Mediterranean hulls have a pointed stern. So, it is difficult to use the strip planking building method. Plywood clinker is very far from Mediterranean tradition and was not an acceptable way. Therefore, we have decided to build as a carvel hull, but using plywood boards. We use in fact the stitch and tape method, but with a high number of planks, 10 per side. All planks are CNC cut. Holes for stitching are also drilled by the CNC machine. The up-to-date 3D design software allows getting a very high accuracy, planks not requiring any adjustment, except to cut both ends. The hull is planked over a plywood egg box: backbone made of several layers of layers and bulkheads/frames. Buoyancy compartments are made at both ends.

Gabian is lateen rigged, with mainsail and jib. The lateen mainsail stands always on the same side of the mast. The mast is short and easily stepped. It is possible to use the “Catalan” type rig, with the lateen sail only which is changed from one side of the mast to the other when tacking. Then the mast is raked forward, but using the same mast partner. Using the Catalan sail is more complicated but allows to learn all the wealth of this rig used all around the Mediterranean sea in the past. We gave up using a centreboard, not consistent with a mast stepped close to mid-length. The keel has been made high (15 cm), with rocker, to get good upwind performance. Lead ballast (40 kg) is inserted into the plywood keel, which is only 36 mm thick to reduce drag. A water ballast, about 160 litres, gives the boat a displacement hull behaviour, very useful if singlehanded. It is suggested to use a trailer without centreline rollers, allowing the hull to lay as low as possible and easing launching and retrieving. The rudder fittings allow to raise the rudder it when beaching.

We gave up using a centreboard, not consistent with a mast stepped close to mid-length. The keel has been made high (15 cm), with rocker, to get good upwind performance. Lead ballast (40 kg) is inserted into the plywood keel, which is only 36 mm thick to reduce drag. A water ballast, about 160 litres, gives the boat a displacement hull behaviour, very useful if singlehanded. It is suggested to use a trailer without centreline rollers, allowing the hull to lay as low as possible and easing launching and retrieving. The rudder fittings allow to raise the rudder it when beaching.

The pointed stern makes difficult a motor arrangement. Most Med boats have fixed engines, but they are now very expensive and add weight, not desirable on a trailerable boat. We have studied several ways to arrange an outboard, using 3D design. We have finally chosen an off-centered motor well of simple geometry. The owner preferred an electric motor, which is an excellent choice. The Torqeedo travel is light and is easily moved and stowed under side deck when under sail. The deck arrangement is typical of Mediterranean custom, with a hatch of a moderate width allowing to close the deck with covers. It is possible to sleep on board, as the floorboard is 1.2 m wide. As the boat is almost decked, a simple tent is enough. A large locker is fitted ahead of the mast.

The first Gabian was built between February and July 2015 by Arwen Marine boatbuilder. Then Michel Aubert has made the rigging job. The boat, named Hasta Cipango, has been launched at the end of 2015 summer. According to Michel, Gabian is very seaworthy and safe, including in bad weather conditions as the Med is able to offer. A three people crew stays very comfortably and confidently into the cockpit. The rig is well balanced. Tacking never fails, despite the long keel. Hasta Cipango participated to the Saint Tropez lateen sails regattas in 2016. She was very fast and makes third is her class, despite a bad tactical choice.

The building instructions for home builders are nearly ready in French and I may translate them in English if required. If you are interested in building the boat, do not hesitate to get in touch with me and we may agree a delivery time. Please note that the study plan is an extract of the building plans and instructions. Therefore, it is not presently available.

  • Structure design
  • Perspective view
  • Rig "provencal"
  • Catalan rig
  • Building frame with main bulkheads and inner backbone, CNC cut (photo Arwen Marine)
  • Lay down of "carvel' plywood planking (photo Arwen Marine)
  • The keel is made of several plywood layers with a lead core (photo Arwen Marine)
  • The hull is epoxy sheathed (photo Arwen Marine)
  • Hull turned over(photo Arwen Marine)
  • Inside structure (photo Arwen Marine)
  • Deck lay-down (photo Arwen Marine)
  • Hasta-Cipango leaving the boat-yard
  • Hasta-Cipango anchored off Makarska, Croatia (photo Michel Aubert)

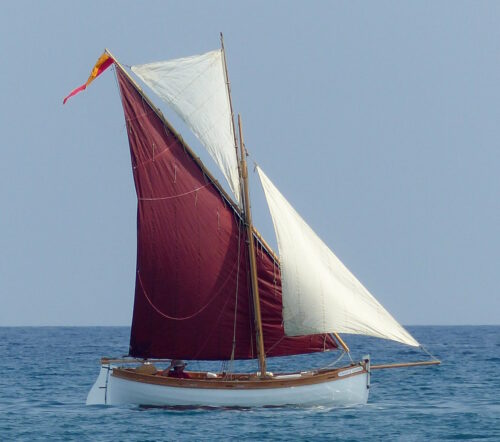

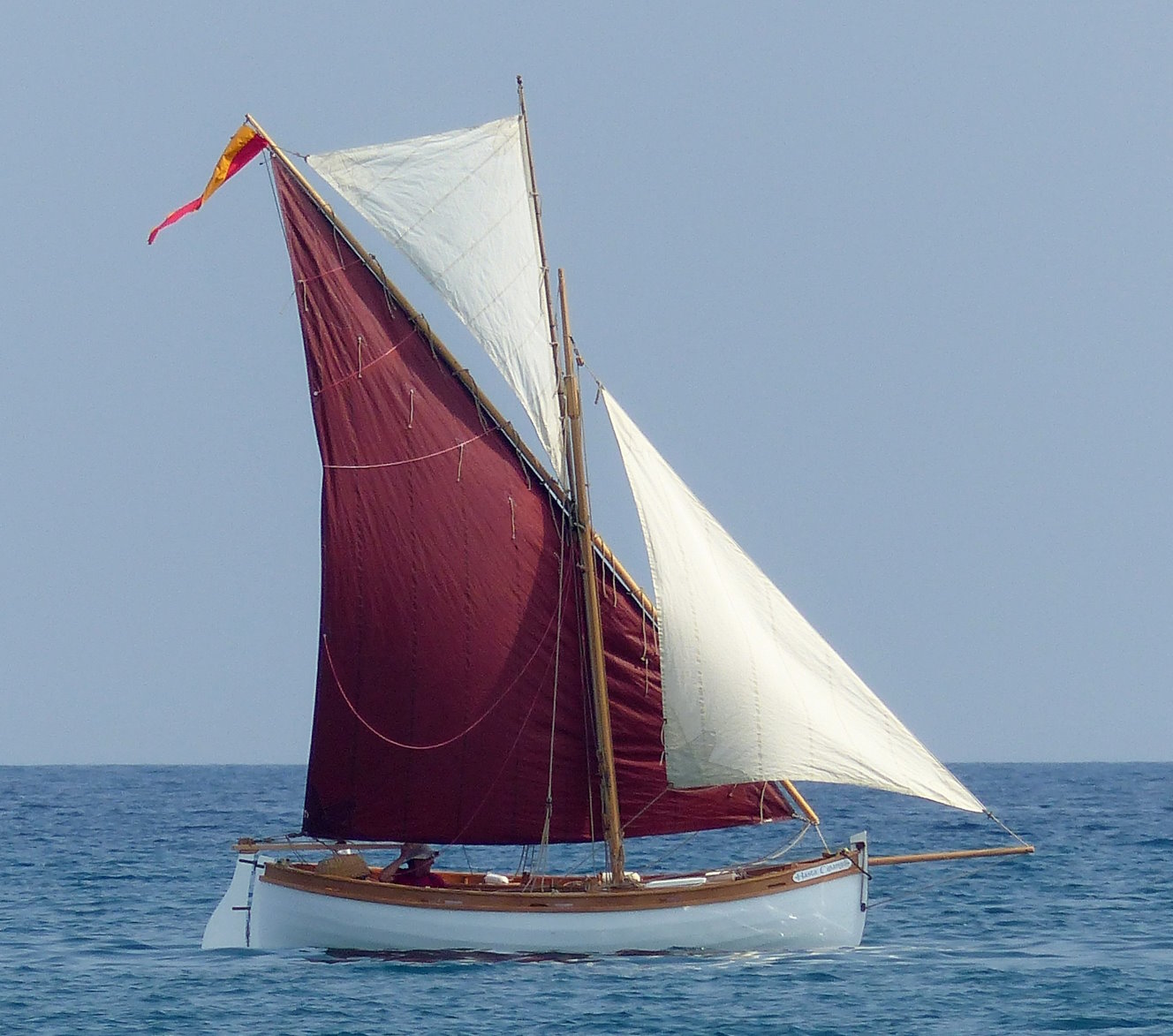

  • Hasta-Cipango sailing (photo Paule de Rivoyre)
  • Hasta-Cipango under sail (photo René Portes)
  • Hasta-Cipango sailing (photo Paule de Rivoyre)
  • Sailing with the yard on the wind side
  • Hasta-Cipango during "Voiles de Saint Tropez" festival
  • Tent to spend a night on board Hasta-Cipango
